ASUS DSL-AC68U/ASUS 4G-AC68U Modem Router Setup

Last Updated: Wednesday, 3 May 2023

The ASUS DSL-AC68U is a popular nbn® modem router that will also work with Opticomm connections. This product is both a modem and a Wi-Fi router, so you can use it without an additional device on nbn® FTTN and FTTB connections.

Configure the Asus DSL-AC68U and ASUS 4G-AC 68U Modem Router for nbn® FTTN and FTTB

We recommend configuring the ASUS Modem/Router before connecting it to your nbn® connection terminal or wall plug.

ASUS devices have been known to lock up the port, so if you have any trouble getting an internet connection, you can perform a port reset on your MyAussie app or simply call our customer service team on 1300 880 905.

A photo of an ASUS DSL-AC68U/ASUS 4G-AC68U modem router on a transparent background
To set up the ASUS DSL-AC68U or ASUS 4G-AC68U Modem Router:

  • First open a browser window and type 192.168.1.1 into the address bar.

  • Go into Administration then select DSL Settings

Ensure the following is enabled for Common Settings:

SettingSelection from dropdown
DSL ModulationVDSL2
ANNEX ModeANNEX A/I/J/L/M
DLAEnabled
SRAEnabled
G.INPEnabled

A screenshot of an ASUS modem/router settings, with the sections

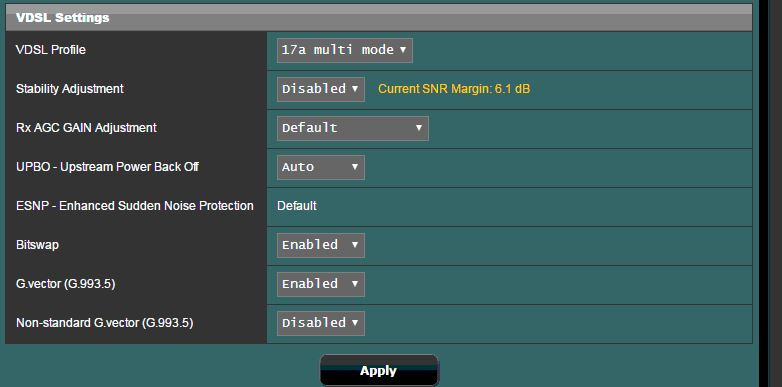

In the VDSL Settings make sure that the following settings are changed:

SettingSelection from dropdown
VDSL Profile17a multi mode
G.Vector (G.993.5)Enabled
Non-standard G.vector (G.993.5)Disabled

A screenshot of an ASUS modem/router's settings, with the

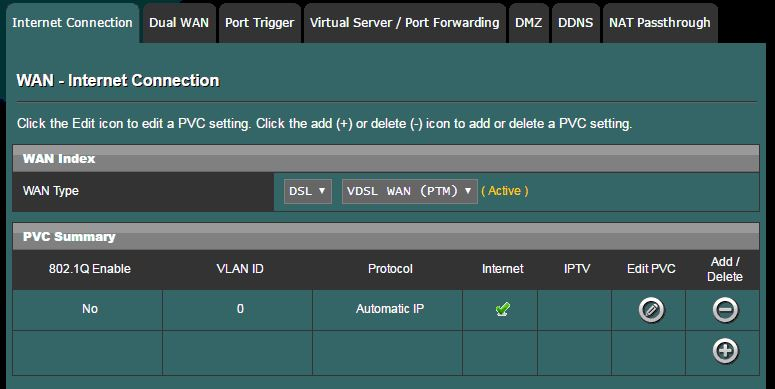

Go to the WAN and select Internet Connection. Ensure the WAN index is set to DSL and VDSL WAN (PTM). If there are no items in the PVC Summary click on the (+) to add a service.

A screenshot of an ASUS modem/router's settings, with the

In the PVC item enable the following settings:

SettingSelection from dropdown
WAN TypeDSL, VDSL WAN (PTM)
WAN Connection TypeAutomatic IP
Enable WANYes
Enable NATYes
Enable UPnPYes
WAN DNS Server automaticallyYes

After connection has been confirmed, reboot your router as it may not allow access to the internet until you do.

Configure the Asus DSL-AC68U and ASUS 4G-AC 68U Modem Router for nbn® FTTP, HFC, FTTC. This also includes the ASUS RT-AC68U.

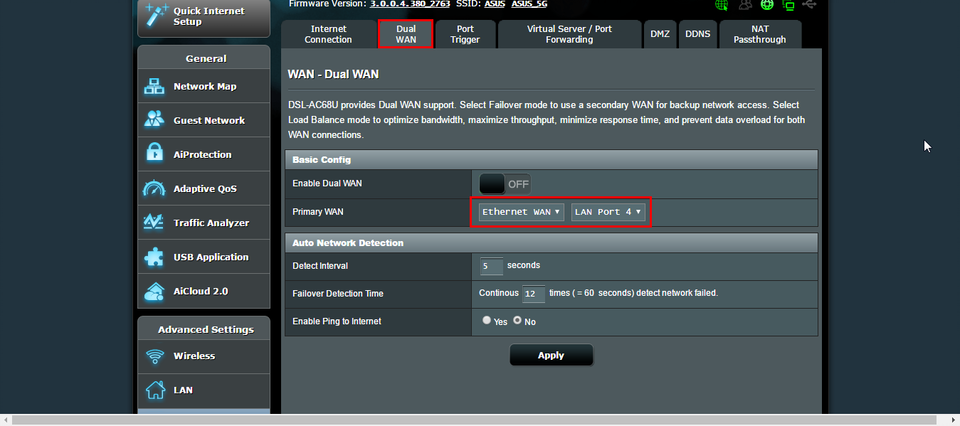

Step 1: Set for Ethernet WAN

It is recommended that you leave the WAN/Internet cable unplugged until after you have configured the modem/router.
If the WAN/Internet cable is plugged in early, the local device you are using for configuration may get public IP lease and be unable to access the modem interface.

  1. Log onto the modem (192.168.1.1)

  2. Go to WAN

  3. Go to Dual WAN

  4. Change Primary WAN to Ethernet WAN

  5. Select the LAN port to use (may be any LAN port)

  6. Connect the WAN/Internet cable to the appropriate LAN port

A screenshot of an ASUS modem/router's settings, with the

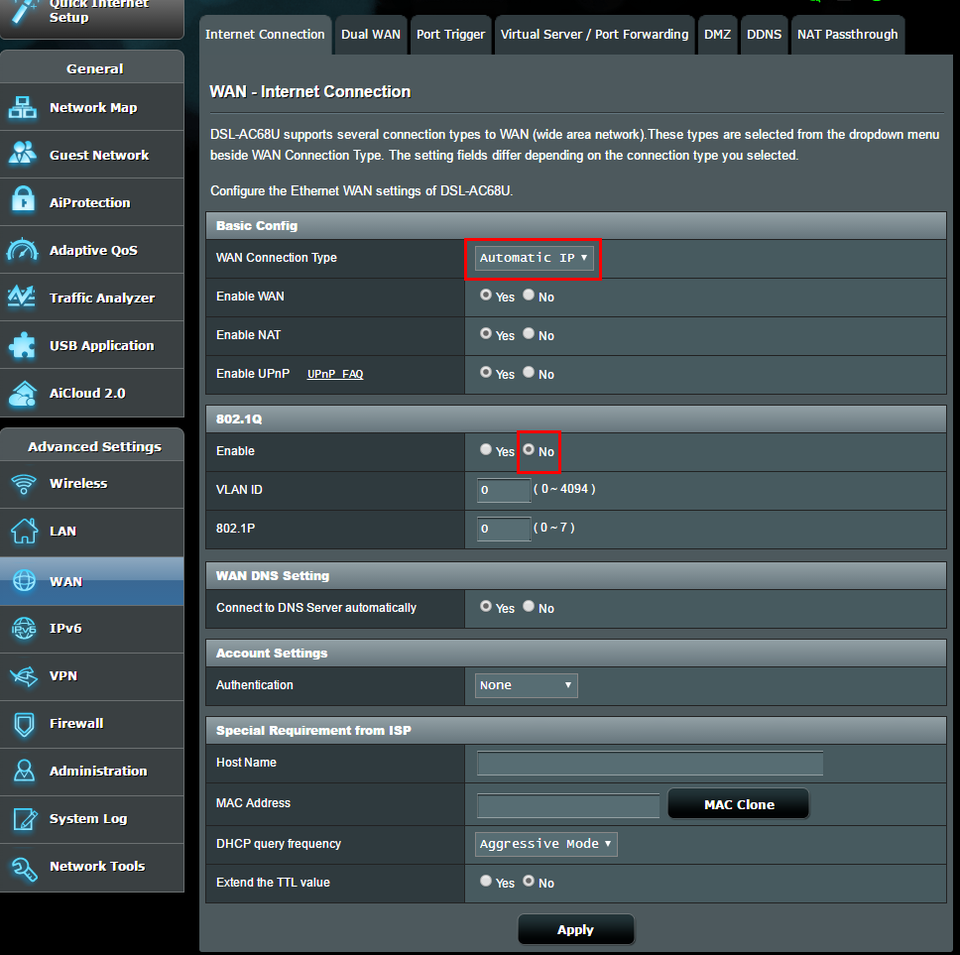

Step 2: Set for Automatic IP

In the WAN settings enable the following settings:

SettingSelection from dropdown
WAN Connection TypeAutomatic IP (PTM)
Enable 802.1QNo
Enable WANYes
Enable NATYes
Enable UPnPYes
Enable UPnPYes

A screenshot of an ASUS modem/router's settings, with the

After connection has been confirmed, reboot your router as it may not allow access to the internet until you do.

If you have any questions or need assistance setting up the ASUS Modem Router, please call our customer service team on 1300 880 905.

Some Features of the ASUS DSL-AC68U include:

  • Great compatibility. Compatible with ADSL2/2+, ADSL, VDSL2, fiber and cable services.

  • 150% wider Wi-Fi coverage

  • Three external high-gain antennas with AiRadar universal beamforming for superb Wi-Fi range
    Intuitive ASUS Router app

  • Manage your network anywhere, without needing to boot up a PC

  • Enterprise-grade security for your home network

  • ASUS AiProtection with Trend Micro® for triplestrength network security, plus robust Parental Controls and privacy protection

  • VPN server and client support

  • Remotely access your home network through encrypted and private connection
    Dual WAN ports

  • Enjoy more internet bandwidth available via aggregating two WAN connections or set up a backup internet connection for better reliability

  • Multi-purpose USB 3.0 port

  • 10X-faster data transfers than USB 2.0

To see more features, visit their site.

Some features of the ASUS 4G-AC68U Modem Router:

  • Fast Wi-Fi Speeds – Concurrent dual-band Wi-Fi delivers smooth streaming with 2.4GHz speeds up to 600Mbps and 5GHz speeds up to 1300Mbps.

  • Ultimate 4G Speed – 4G LTE Category 6 technology lets you enjoy 7X-faster speeds than 3G mobile broadband.

  • Optimized Wi-Fi Range – AiRadar beamforming and high-power antennas for better coverage.

  • Parental Controls – Monitor and restrict internet activity for any user.

  • Enterprise-grade Security – ASUS AiProtection provides advanced protection for all devices connected to your home network.

To see more of the ASUS 4G-AC68U features, visit their site.
